Sharepoint - Excel to S3 automation

Microsoft Graph is a technology platform that allows organizations to connect their business systems with Microsoft 365 SaaS data and services. Microsoft Graph includes all the options available in modern cloud integration platforms, including interactive APIs, data ingress and egress capabilities, and event-based integration.

The best choice for this application is to use Microsoft Graph RESTful HTTP APIs. The client app responds to user actions and can make requests and process the data at a speed that's controlled by the client environment.(Graph Explorer | Try Microsoft Graph APIs - Microsoft Graph )

Steps to let Azure application get access to Sharepoint folder

1. Request 'Sites.Selected' from Entra ID Admin Portal
1. To be requested by: - You
2. To be consented by: - Entra ID Administrator.


2. Grant your application, permissions on the site collection
1. https://pnp.github.io/powershell/cmdlets/Grant-PnPAzureADAppSitePermission.html#example-2 [pnp.github.io]


3. Use Python SDK within your application
1. Install SDK - https://learn.microsoft.com/en-us/graph/sdks/sdk-installation#install-the-microsoft-graph-python-sdk [learn.microsoft.com]
2. SAMPLE CODE based on GitHub sample - https://github.com/microsoftgraph/msgraph-sdk-python/blob/main/docs/drives_samples.md [github.com]

import asyncio
import requests
from azure.identity import ClientSecretCredential
from msgraph import GraphServiceClient
import nest_asyncio

# pip install msgraph-sdk azure-identity nest_asyncio


nest_asyncio.apply()

client_secret = 'xxxxxxx'  # graphapi
tenant_id = 'xxxxxxx'
client_id = 'xxxxxx'
site_id = 'xxxxxx'
drive_id = 'xxxxxx'  # SharePoint document library is a drive in Graph
parent_folder_id = 'xxxxxx'
## INPUT FROM USER ##
folder_name = 'xxxxx'
file_name = 'xxxxxx.xlsx'

# Create a credential object. Used to authenticate requests
credential = ClientSecretCredential(
    tenant_id=tenant_id,
    client_id=client_id,
    client_secret=client_secret)

scopes = ['https://graph.microsoft.com/.default']
# Create an API client with the credentials and scopes.
client = GraphServiceClient(credentials=credential, scopes=scopes)


# Get folder_id from MFG Data Owners folder
async def get_folder_id(folder_name):
    item = await client.drives.by_drive_id(drive_id).items.by_drive_item_id(parent_folder_id).children.get()
    if item and item.value:
        for item in item.value:
            if item.name == folder_name:
                return item.id


# Get Excel file from sub folder
async def get_drive_items(folder_id):
    item = await client.drives.by_drive_id(drive_id).items.by_drive_item_id(folder_id).children.get()
    if item and item.value:
        for item in item.value:
            if item.name == file_name:
                print(item.name)
                print(item.additional_data)
                updated_file_name = item.name.replace(" ", "_")
                download_url = item.additional_data['@microsoft.graph.downloadUrl']
                resp = requests.get(download_url)

                output = open(f'{updated_file_name}', 'wb')
                output.write(resp.content)
                output.close()


folder_id = asyncio.run(get_folder_id(folder_name))
asyncio.run(get_drive_items(folder_id))

Tableau - trigger starting extract job

This summary is not available. Please click here to view the post.

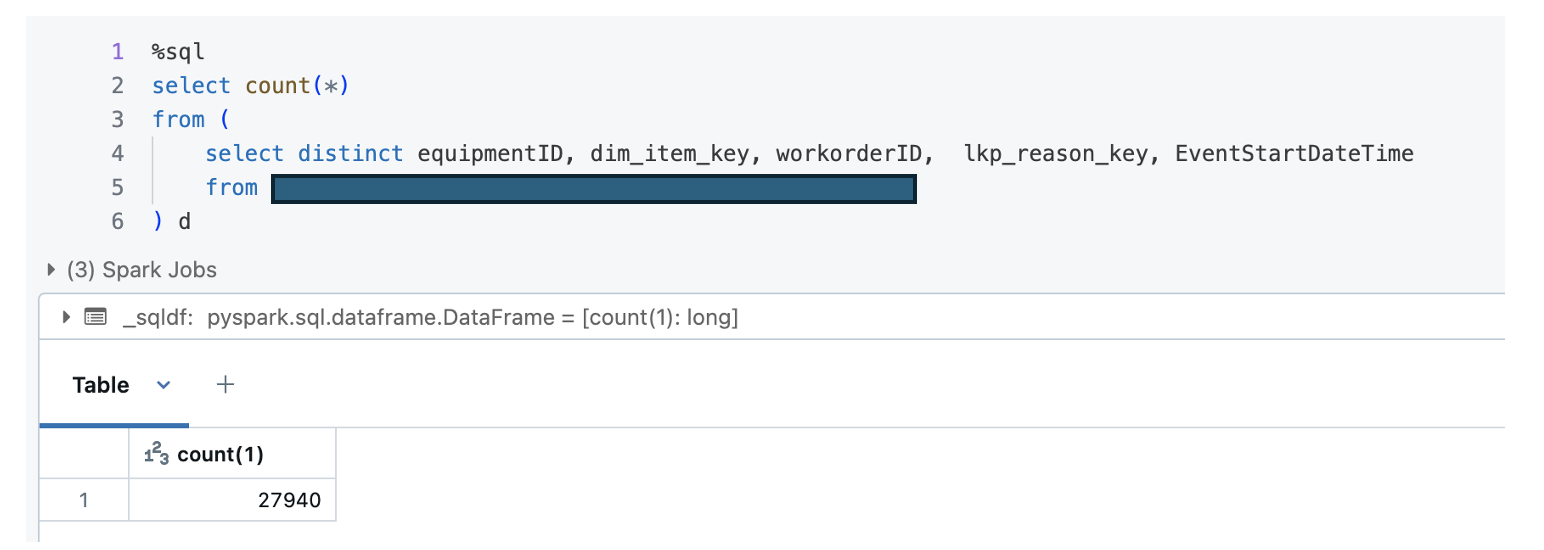

SQL - Why count are different?


Be careful using count(distinct col1, col2, col3,...) !

If any of the columns which are used in the count(distinct xxx) function that have NULL values, the count is not accurate!

Python - get folder size from s3 bucket

 import boto3

bucket_name = 'xxxxxxx'

def get_size(bucket, path):

s3 = boto3.resource('s3')

my_bucket = s3.Bucket(bucket)

total_size = 0

for obj in my_bucket.objects.filter(Prefix=path):

total_size = total_size + obj.size

return total_size/1024/1024

def list_folders(s3_client, bucket_name):

response = s3_client.list_objects_v2(Bucket=bucket_name, Prefix='', Delimiter='/')

for content in response.get("CommonPrefixes", []):

yield content.get('Prefix')

s3_client = boto3.client('s3')

folder_list = list_folders(s3_client, bucket_name)

for folder in folder_list:

print('Folder found: %s' % folder)

print(folder, get_size(bucket_name, folder))

Python - Finding Correlation Between Many Variables (Multidimensional Dataset) with Python

import numpy as np
import pandas as pd
import matplotlib
matplotlib.use('TkAgg')
import matplotlib.pyplot as plt

data = pd.read_csv('/Users/Downloads/test.csv', index_col=0)
corr = data.corr()
fig = plt.figure()

ax = fig.add_subplot(111)
cax = ax.matshow(corr, cmap='coolwarm', vmin=-1, vmax=1)
fig.colorbar(cax)
ticks = np.arange(0, len(data.columns), 1)
ax.set_xticks(ticks)
plt.xticks(rotation=90)
ax.set_yticks(ticks)
ax.set_xticklabels(data.columns)
ax.set_yticklabels(data.columns)

plt.show()

PySpark SQL - write out records with time across multiple days

 Example:

From A:

To B:

Logic:

1. Use sequence() to list out the interval dates between the start and end date.

2. Use explode() to create duplicate rows with the interval dates.

3. Use lag() and row_number() to create extra dates columns for the next steps.

4. Use CASE statement to select different dates based on the row_no to indicate the first/last row.

Code:

tbl_explode as (

select StartDateTime

, explode(sequence(to_date(dateadd(day,1,StartDateTime)), to_date(dateadd(day,1,EndDateTime)), interval 1 day)) as interval_date

, EndDateTime

, *

from tbl_1

where datediff(day, StartDateTime,EndDateTime) > 0 or cast(StartDateTime as date) <> cast(EndDateTimeUTC as date)

),

tbl_time_split as (

select CASE WHEN row_no_min = 1 THEN StartDateTime

ELSE to_timestamp(lag_date) END AS new_StartDateTime

, CASE WHEN row_no_max = 1 THEN to_timestamp(EndDateTime)

ELSE to_timestamp(interval_date) END AS new_EndDateTime

, *

from(

select interval_date

, lag(interval_date, 1) OVER(PARTITION BY WO ORDER BY interval_date) as lag_date

, row_number() OVER (PARTITION BY WO, EventDate ORDER BY interval_date ) as row_no_min

, row_number() OVER (PARTITION BY WO, EventDate ORDER BY interval_date desc ) as row_no_max

, *

from tbl_explode

) d

)

Azure - functions to get schema from schema registry using API

 import requests

AZURE_TENANT_ID = 'xxxx'

AZURE_CLIENT_ID = 'xxxx'

AZURE_CLIENT_SECRET = 'xxxx'

group_name = "xxxx"

auth_url = f'https://login.microsoftonline.com/{AZURE_TENANT_ID}/oauth2/v2.0/token'

headers = {

'Content-Type': 'application/x-www-form-urlencoded',

"User-Agent": "Mozilla/5.0 (Windows NT 6.1; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/64.0.3282.140 Safari/537.36"

}

class GetSchemaFromAzure():

def __init__(self, schema_name, fully_qualified_namespace):

self._fully_qualified_namespace = fully_qualified_namespace

self._schema_group = group_name

self._schema_name = schema_name

def _get_azure_schema(self):

# GET AUTH TOKEN TO GET SCHEMA

_params = {"grant_type": 'client_credentials',

"client_id": AZURE_CLIENT_ID,

"client_secret": AZURE_CLIENT_SECRET,

"scope": "https://eventhubs.azure.net/.default"

}

_auth_session = requests.session()

_auth_response = _auth_session.post(auth_url, headers=headers, data=_params)

_access_token = _auth_response.json()['access_token']

# PASS TOKEN TO INVOKE ADF PIPELINE TRIGGER

_api_url = f'https://{self._fully_qualified_namespace}/$schemagroups/{self._schema_group}/schemas/{self._schema_name}?api-version=2020-09-01-preview'

print(_api_url)

headers['Authorization'] = f"Bearer {_access_token}"

_response = requests.get(_api_url, headers=headers)

res = _response.json()

return res

def _get_avro_schema(self):

_schema = self._get_azure_schema()

_schema_df = spark.read.format("avro").option("avroSchema", schema).load()

def get_str_schema(self):

_schema = self._get_azure_schema()

_json_schema = _schema['fields']

_list_schema = []

for col in _json_schema:

if not isinstance(col['type'], list):

col['type'] = list(col['type'].split(" "))

_col_schema = col['name'] + " " + col['type'][0].upper()

_list_schema.append(_col_schema)

print("header count: ", len(_list_schema))

str_schema = ", ".join(col for col in _list_schema)

return str_schema

Example:

AzureSchema = GetSchemaFromAzure(schema_name=xxx, fully_qualified_namespace=fully_qualified_namespace)

AzureSchema.get_str_schema()
